  No.:HAS-SC

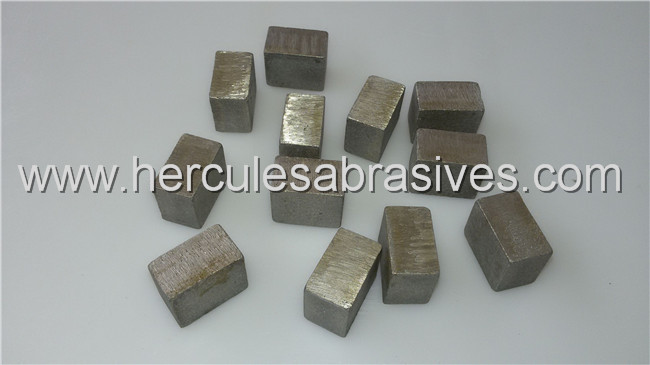

  Item:Diamond Segments for Sandstone Circular Blade


Product Description

1. Characteristics

(1) Diamond segments for Sandstone are mainly used for cutting all kinds of sandstone blocks.
(2) The blade has good sharpness and high efficiency at the process of cutting, meanwhile, it has a long lifespan.
(3) Good cutting result: smooth cutting, flat surface and even size.
(4) Stable cutting, narrow cutting gap, stone waste reduction.
(5) Sandwish and Multi-layers segment model for choosing.

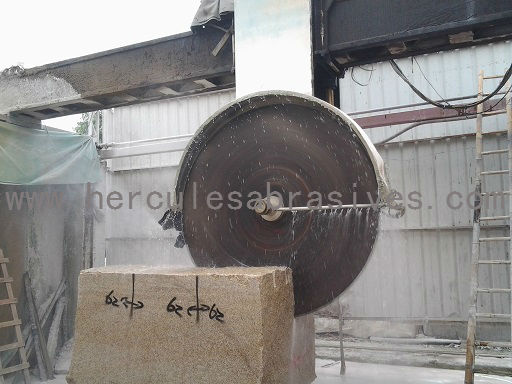

(6) Applicable Machine: Multi-blades block cutting machine, single blade block cutting machine.

2. Specification

Cutting Type Diameter (mm) Steel core(mm) Specification (LxWxH) No. of Teeth
Sandstone 1000 5.0 24 x 7.0/6.4 x 15/20 70
1200 5.5 24 x 7.4/6.5 x 15/20 80
1350 6.0 24 x 7.0/8.0 x 15/20 88
1400 6.0 24 x 7.0/8.0 x 15/20 92
1600 7.2 24 x 9.0/8.4 x 15/20 108
1800 7.5 24 x 10.0/9.0 x 15/20 120
2000 8.0 24 x 10.7/9.7x 15/20 128
2200 9.0 24 x 10.7/9.7x 15/20 132
2500 9.0 24 x 11.5/10.7x 15/20 140
2700 9.0 24 x 12.5/11.5x 15/20 156
3000 9.3 24 x 12.5/11.5x 15/20 160
3500 9.5 24 x 13.5/12.5x 15/20 180

Remark: Other specifications are available upon request.
3. More Images
